102" x .550" x 90,000lbs.
MFG:  SMS
Yr: Late 1990's

Gauge:  .080" Min.-.550 Max.
Material Width:  102" Max.
Coil Weight:  90,000lbs. Max.
Coil ID:  20" & 30"
Coil OD:  40" Min.-72" Max.
Line Speed(FPM):  45Max

Entry Coil Cart

Uncoiler
90,000lbs. Max. Weight Capacity
Coil ID:  20" & 30"
Coil OD:  40" Min.-72" Max.
Pumpkin Tooth Mandrels
Hold Down
Slide Base
Outboard Support

Slitter

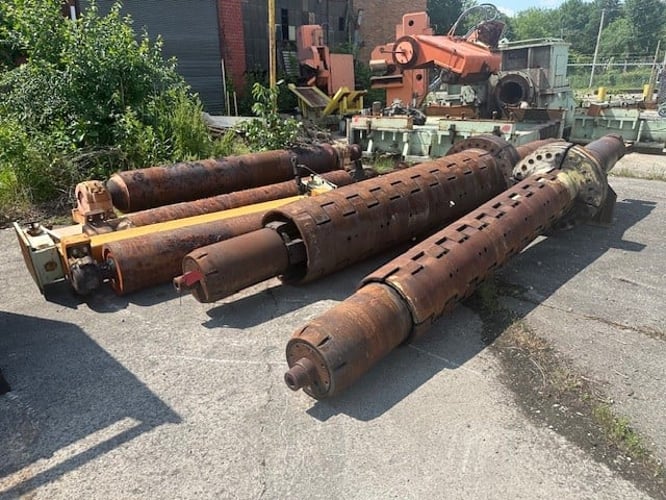

16" dia. Arbors
Robotic Loading of Tooling which Stages on a Loading Turnstile to Unpack & Pack the Arbors at one time.
150HP DC Motor, 1150/1750RPM
H&S Reducer:131:1 Ratio

Butech Choppers

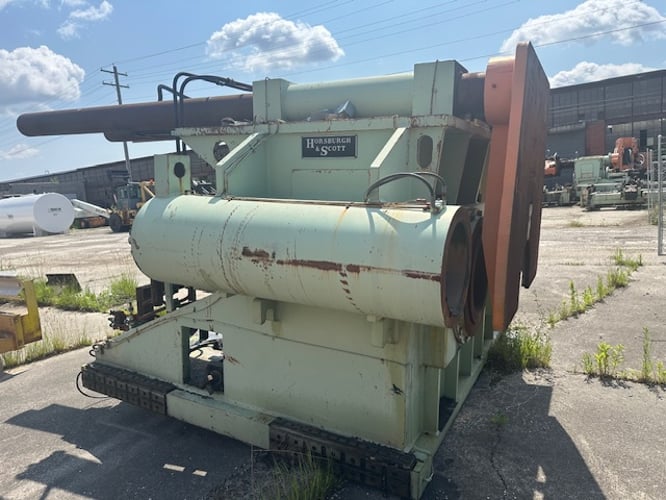

Recoiler
90,000lbs. Max. Weight Capacity
20" & 24" ID Drums
72" OD Max.
110" Drum Face
Outboard Bearing Support
Exit Edge Control(American Edge Control)

Coil Cart

WE WILL CONSIDER SPLITTING UP THE COMPONENTS
