SPECIFICATIONS:

MFG: RUESCH

Uncoiler
Model: N3022B S/N: 6195
6,000# capacity
28" face
Slide Base
Hydraulic Expansion
12" dia. to 16" ID with pads
Lift Cart: 36" Deck

Guild Butt end Welder

Roll type Crop Shear

Edge Guides: 22: Max. Opening

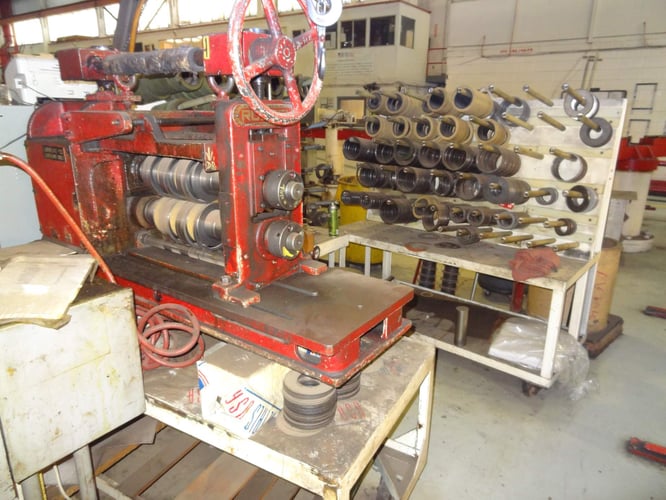

Slitter heads(Two)
Model: N3022E S/N: 6195 model 149 heads
2.875" Diameter arbors x 19" face
Capable of ring set up
10 HP, 240V., 1750 RPM Motor
Full Complement of tooling

Ruesch Baller

Pit Cross over

Drag Board Tension Stand: 36" Wide

Recoiler
6,000# capacity
16" ID
24" face Drun
40 HP, 500V., 1750 RPM Motor
2 Speed Drive All Reducer

Optional Ruesch Recoiler available at additional price:
20,000# Capacity
Thickness Range: 0.005" - 0.090"
15" Dia. "Sliptech" Drum (New in 1996)
39" Drum Face
7" Dia. Main Shaft
Large amount of Sliptech tooling; fiber cores and steel spacers
40 HP DC Motor, 1750/2100 RPM, 500 V,
 Less Solid State Drive
Gear Reducer Rated at 75 HP, with 25.63:1 Ratio
45.5" Passline from floor to center of Drum
Overall Size: 127" L x 60" W x 70" High

Optional Loopco Coil car at additional price:
20,000# Capacity
Floor standing "L" type design
36" wide Deck
62" Max. OD
Self Enclosed hydraulic power unit

Located at Met-Pro's Mack Ave, Detroit, MI 48207
warehouse.

The line is 24" capable except for the heads which can be coverted for
 approx. $9200 ea. and the recoiler drum
