SPECIFICATIONS:

MFG: STRILICH TECHNOLOGIES, Inc., Crown Point, IN
Model: 1009
1997 Elect Drawing

20,000lbs Weight Capacity
20" ID(approx 19" clapsed), 23"? ID(approx 22" clapsed) with Pads(1.5"
 thick Pads)
Drum face: 73.5" with Pads, 77.5" without Pads
Hydraulic Expansion and Grip
Full width coated Hold Down Roll
US 60 HP DC Motor, 500V., 1750 RPM, 105amps, 328AT frame, Cont. Duty
SEW EuroDrive Inc. Reducers SO# 850046987-98 12.92:1 Ratio
9" Shaft at bearing
CMC Digimaster Drive, Model: DM12-B1AC-R Part:MDH-07785

3 Units Available:

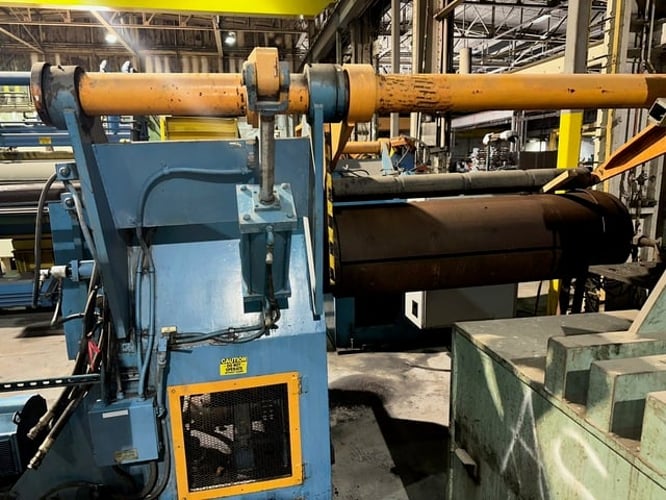

STRILICH Recoiler #11 Right to Left mode of operation per Griper
overwinding & Hold Down.
 with Tag Strilich Model: 1009, S/N: 101696, DC
Motor-with Blower
 CMC Drive S/N: 733118-1A
STRILICH Recoiler #12 Right to Left mode of operation per Griper
overwinding & Hold Down.
 No Tag, same as above, No Motor-has a Blower
 CMC Drive S/N: 650198-1A
STRILICH Recoiler #14 Right to Left mode of operation per griper
overwinding & Hold Down.
 No Tag, same as above, DC Motor-with no Blower
 CMC Drive S/N: 733118-1B
