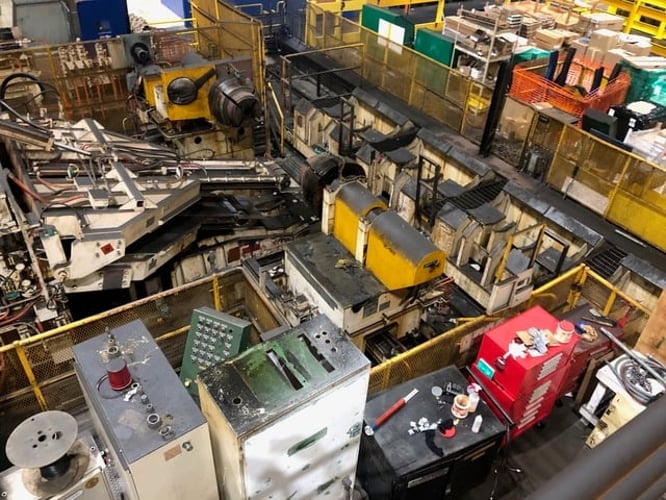

SPECIFICATIONS:

MFG: WEAN Industries
Year: 1988

80,000lbs Max. Coil Weight Capacity
Coil ID: 22-26"
Coil OD: 24" Min. 72" Max.
Width: 24" Min.-84" Max.
Line Speed 300FPM
Material as ordered: Mild, CR, EC & Galv.
 .020" to .060" at 84" wide & 060" to .125" at 24"
 wide

Consisting of:

4 Position Coil Staging Cart, SO: 100, Dwg. 2-130147
5 Sets of Hydraulically Driven Wheels

Coil Cart, SO: 110, Dwg. 2-130489

Double Expanding Mandrel Reel/Uncoiler, SO: 120, 2-129838 & SO-130,
Dwg. 2-129835
80,000lbs Capacity
21.38-28.38 ID Expansion Range(can be altered to occomdate 20" ID
25 HP DC GE Servo Motor(366AT Frame) for Feed up
Fawick Airflex Brake

Entry Feed Up Unit:
Hold Down Roll/Snubber, SO: 140, Dwg. 108320
Peeler Table, SO: 150, Dwg. C-108319
Entry Pinch Rolls, SO: 160, Dwg. C-108349
Side Guides, SO: 160, Dwg. C-108383
Crop Shear/Crimper, SO: 170, Dwg. 2-130324

At Present also available are:

-Wash & Flex unit

-Wean Straightener
Entry Backed up Pinch Rolls
11 Roll(5/6 config.)
2.5" dia. Work Rolls x 90" face
7 Flights of non-adjustable back up Rolls(Top & Bottom)
3" dia. cam type back ups
75 HP DC Motor(Unico GE-75HP-1150(to be confirmed)), 270V, 1150 RPM,
Frame: 407AT

-Looping Cascades/Catenary Tables
Radius: 50"
Urethane coated rollers
-Table Table with Stock Guides
Radius 50"
Urethane coated rollers
with 2 sets of double roll steel Stock Guides
-Pit Cross Over Tables
92.35" & 88.88" Table lengths from Pivot
Hyd, actuated extension tables Front & Back
Existing Pit: 126" Long

-Feeder(Roll type, but not full width)
Anti Back Up Rolls: 6.25" Dia.
Measuring Roll:
Feed Rolls: 7.28 Dia. x 90" face
Unico GE 490-1500 Motor 368AT Frame
57" Pass Height
